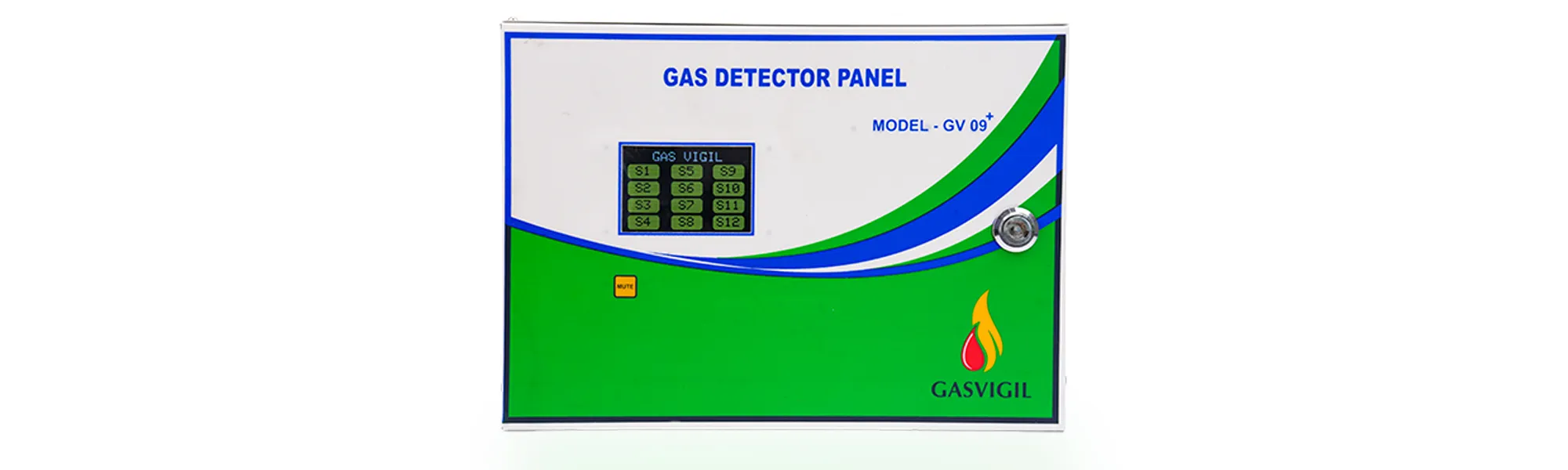

The GV 09 Plus Panel by Gasvigil Technologies is a robust and scalable gas detection control panel designed for high-safety environments such as commercial kitchens, hotels, manufacturing units, and gas banks. This panel supports up to 8 gas detectors, offering centralized monitoring and real-time alerts for accurate and timely gas leak detection. Equipped with a user-friendly interface, LED indicators, and inbuilt audio alarms, the GV 09 Plus enables facility managers to respond to gas leaks quickly and efficiently. Its compatibility with LPG gas detectors, methane sensors, and exhaust fans makes it a critical part of any gas leak alarm system.
Built with industrial-grade durability and advanced circuit protection, this gas detection controller is ideal for integrating with fire alarm panels, exhaust systems, or BMS setups, ensuring full-fledged gas safety management.
Detection Gas | LPG/PNG/H2/C2H2/NH3 |
Range | 0-100% LEL / 0-350PPM |
Min Reading | 1% VOL |
Display Error | +/- 3%(F.S) |
Transmission Distance | 850m |
Alarm Point | 10% LEL |
Working Voltage | DC24 +/- 3V |
Rated Power | 2.5 W |
Output Signal | Digital RS485 Communication |
Detection Way | Diffusion |
Response Time | < 60s |
Cable Specification | Four Wire system RVVP4*1.0mm2 |
Working Temp | -10C ~ 60c |
Working Humidity | 10~95% RH |
Storage Temp | 10C~40C |
Sensor Type | Pellistor / Electrochemical |
Power Supply | DC24V |
Production Grade | Exd IIC T6 Gb |
Protection Grade | IP67 |
Electrical Interface | m20*1.5mm2 |
Way to install | Fixed bracket / Wall mounting |
Weight | 0.750Kg |
