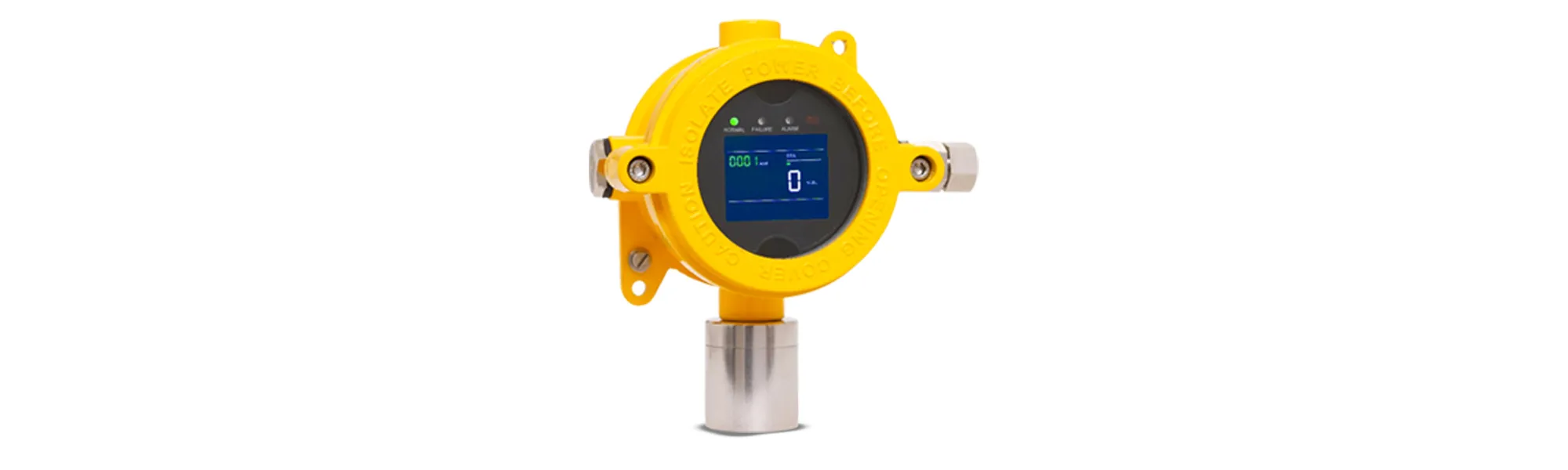

The Gasvigil Technologies GV 108 Gas Detector is a versatile, high-precision
instrument engineered for industrial safety, commercial gas monitoring, and
real-time gas leak detection. This cutting-edge solution proactively ensures safety
by rapidly detecting LPG, a wide range of combustible gases, and toxic gases,
providing immediate audio-visual alerts upon detection to minimize risks. Built for
durability with a robust design and user-friendly interface, the GV 108 supports
stringent industrial safety standards. Its advanced sensor technology, fast response
time, and reliable performance make it a top choice for hazardous environments such
as fuel storage facilities, commercial kitchens, and gas pipelines.
Key applications include:
- Commercial kitchens and
food courts
- Industrial plants and
manufacturing units
- Power generation facilities
- Gas cylinder storage and
distribution centers
- Refineries and chemical
plants
- Server rooms, battery
rooms, and confined spaces
Detection Gas |
All Gases Available
|
Range
|
0-100% LEL/PPM
|
Min
Reading |
1% VOL |
Display Error |
+/- 3%(F.S) |
Transmission Distance |
850m |
Alarm
Point |
Low Alarm: 10% LEL,
High Alarm:30% LEL |
Working Voltage |
DC24 +/- 3V |
Rated
Power |
2.5 W |
Output Signal |
Digital RS485
Communication
|
Detection Way |
Diffusion |
Response Time |
< 60s |
Cable Specification |
Four Wire system
RVVP4*1.0mm2 |
Working Temp |
-10C ~ 60c |
Working Humidity |
10~95% RH |
Storage Temp |
10C~40C |
Sensor Type |
Pellistor /
Electrochemical |
Power Supply |
DC24V |
Production Grade |
Exd IIC T6 Gb |
Protection Grade |
IP67 |
Electrical Interface |
m20*1.5mm2
|
Way to install |
Fixed bracket / Wall
mounting |
Weight |
0.750Kg |
